Terrace Line Residence Drawings

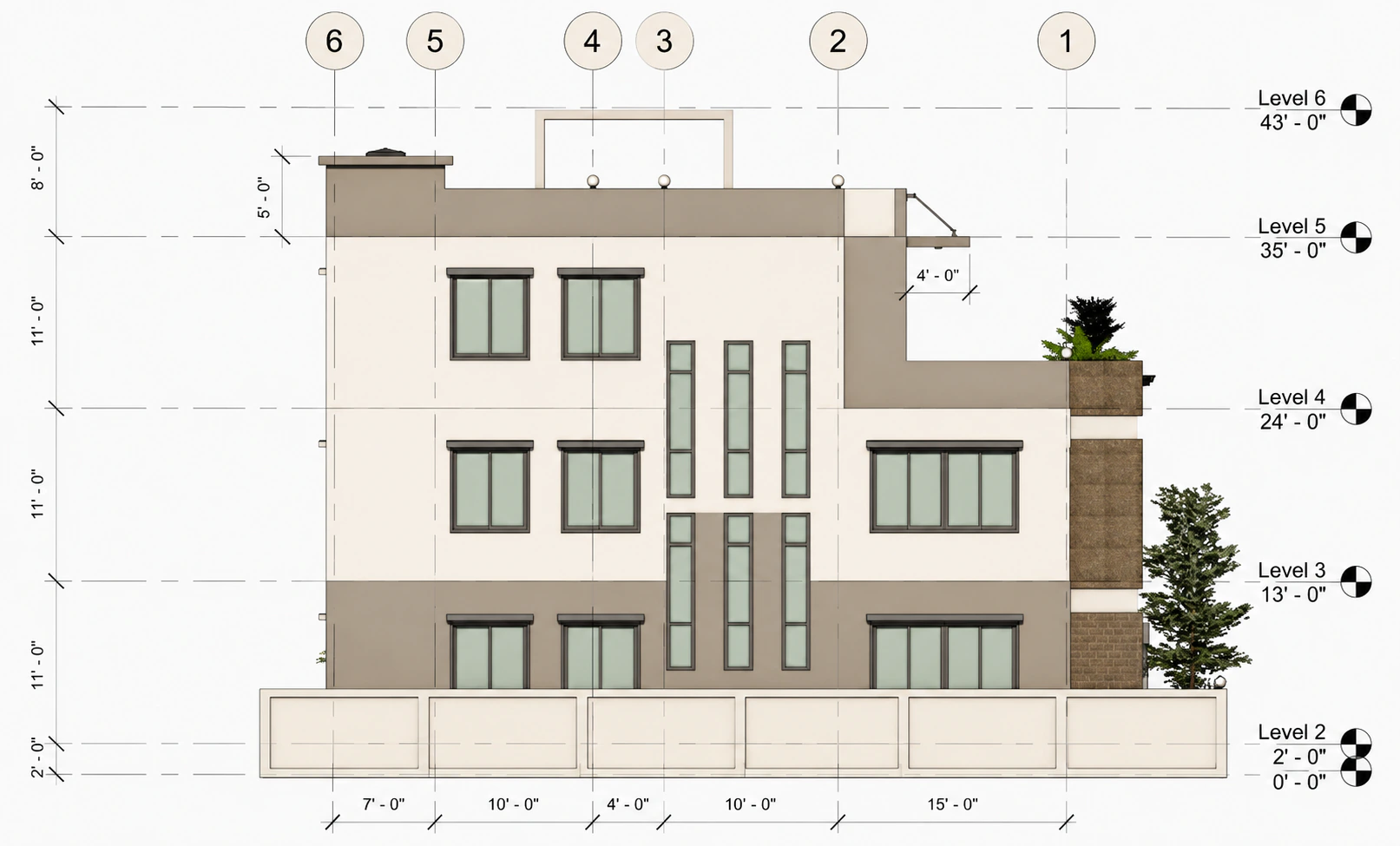

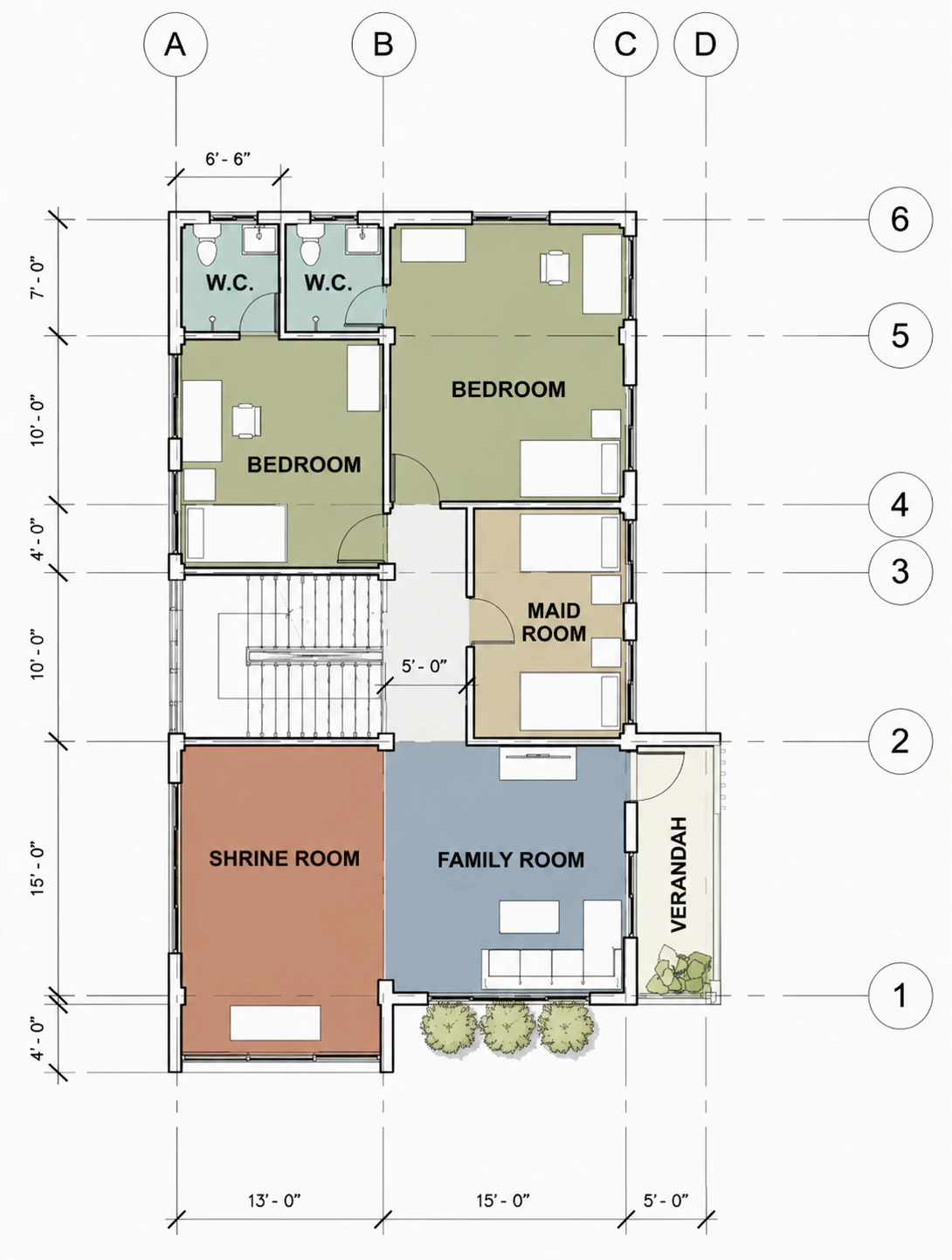

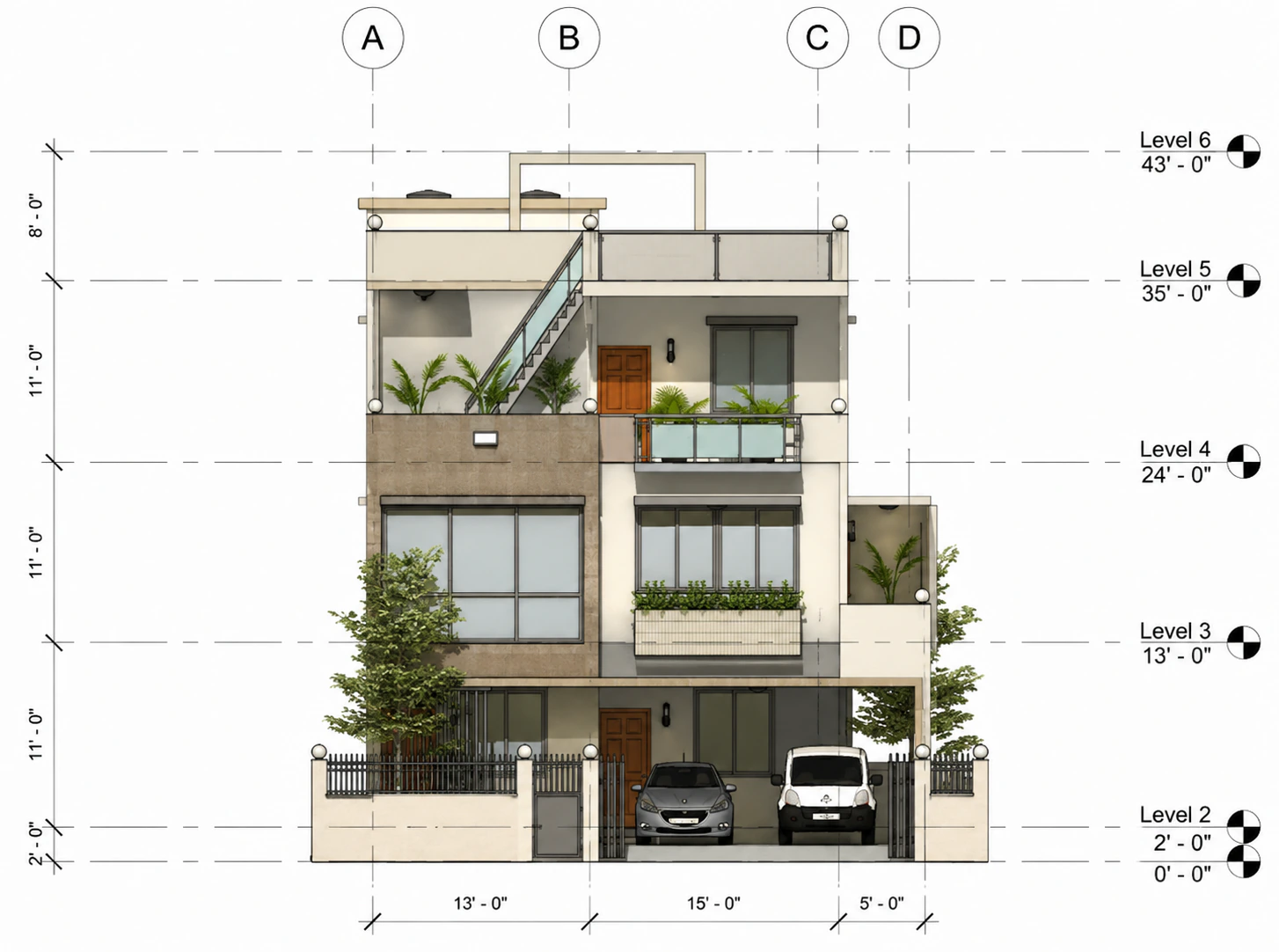

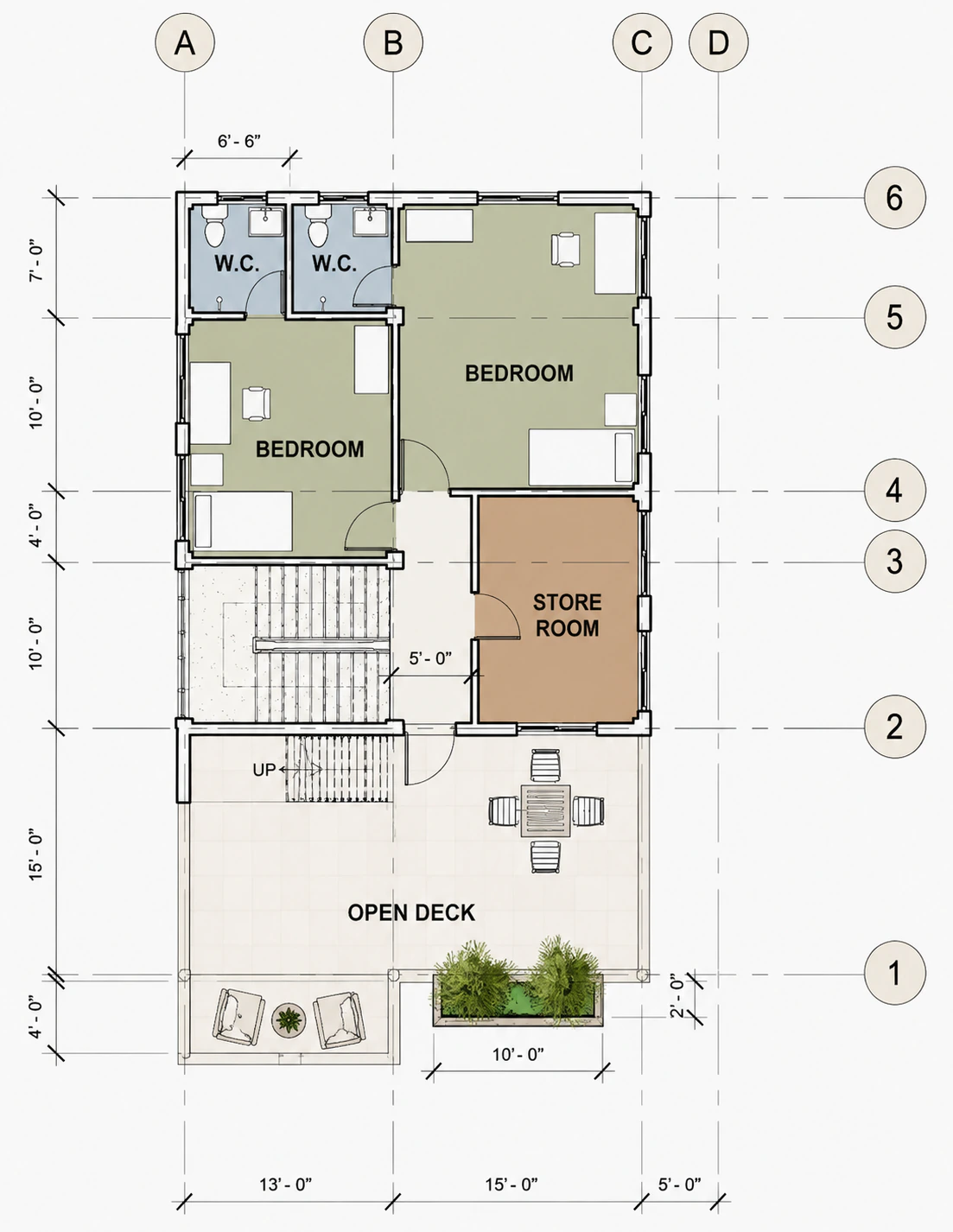

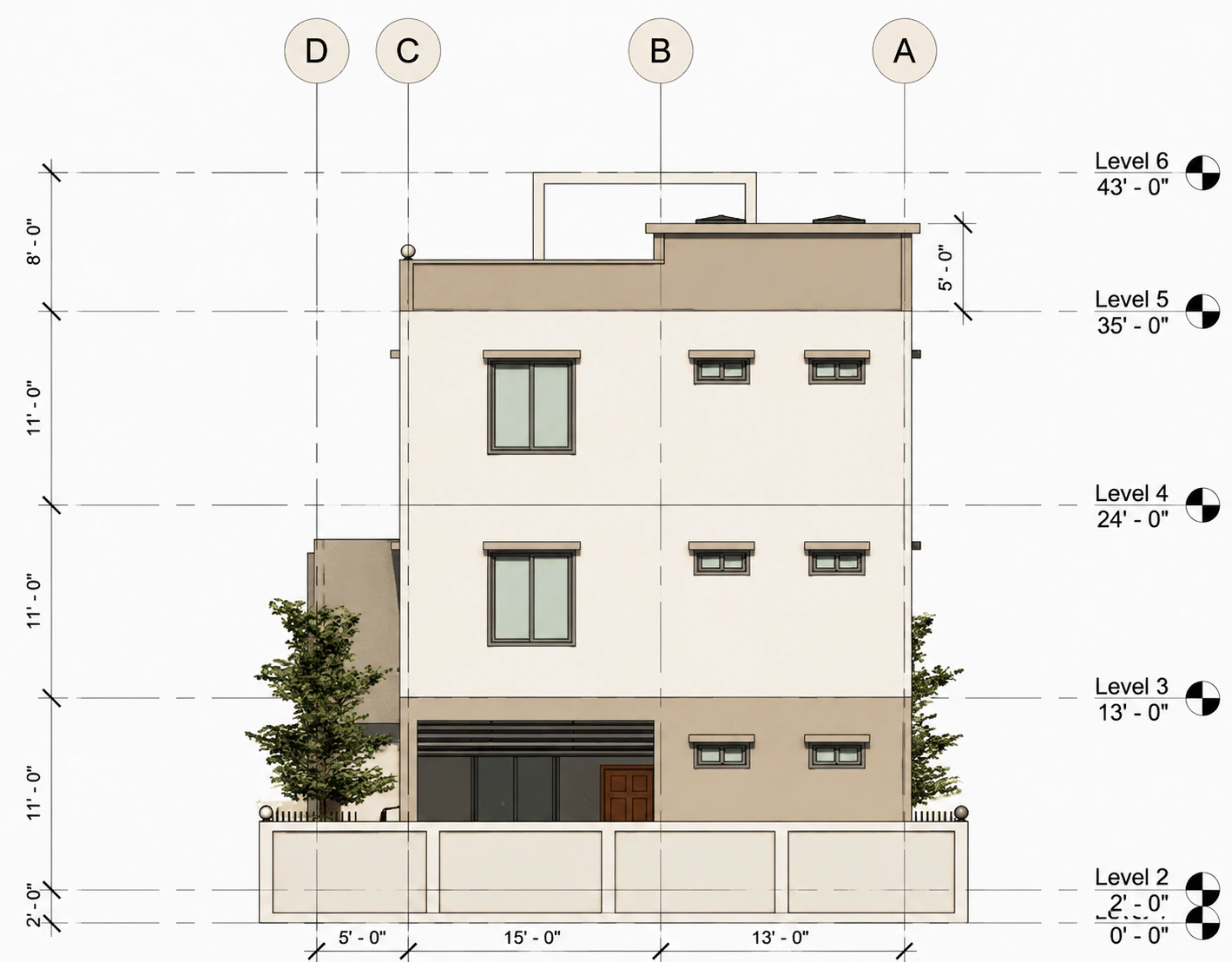

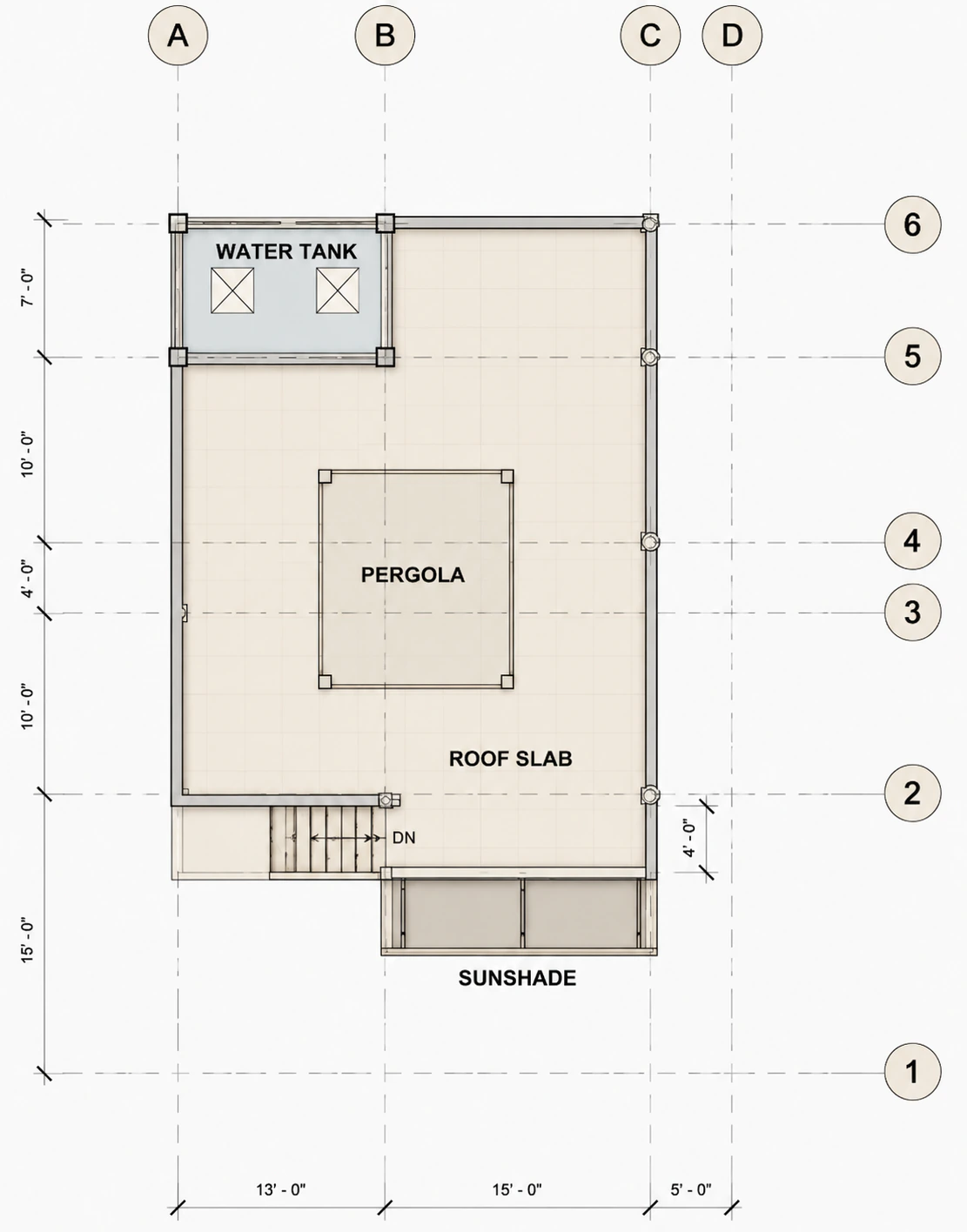

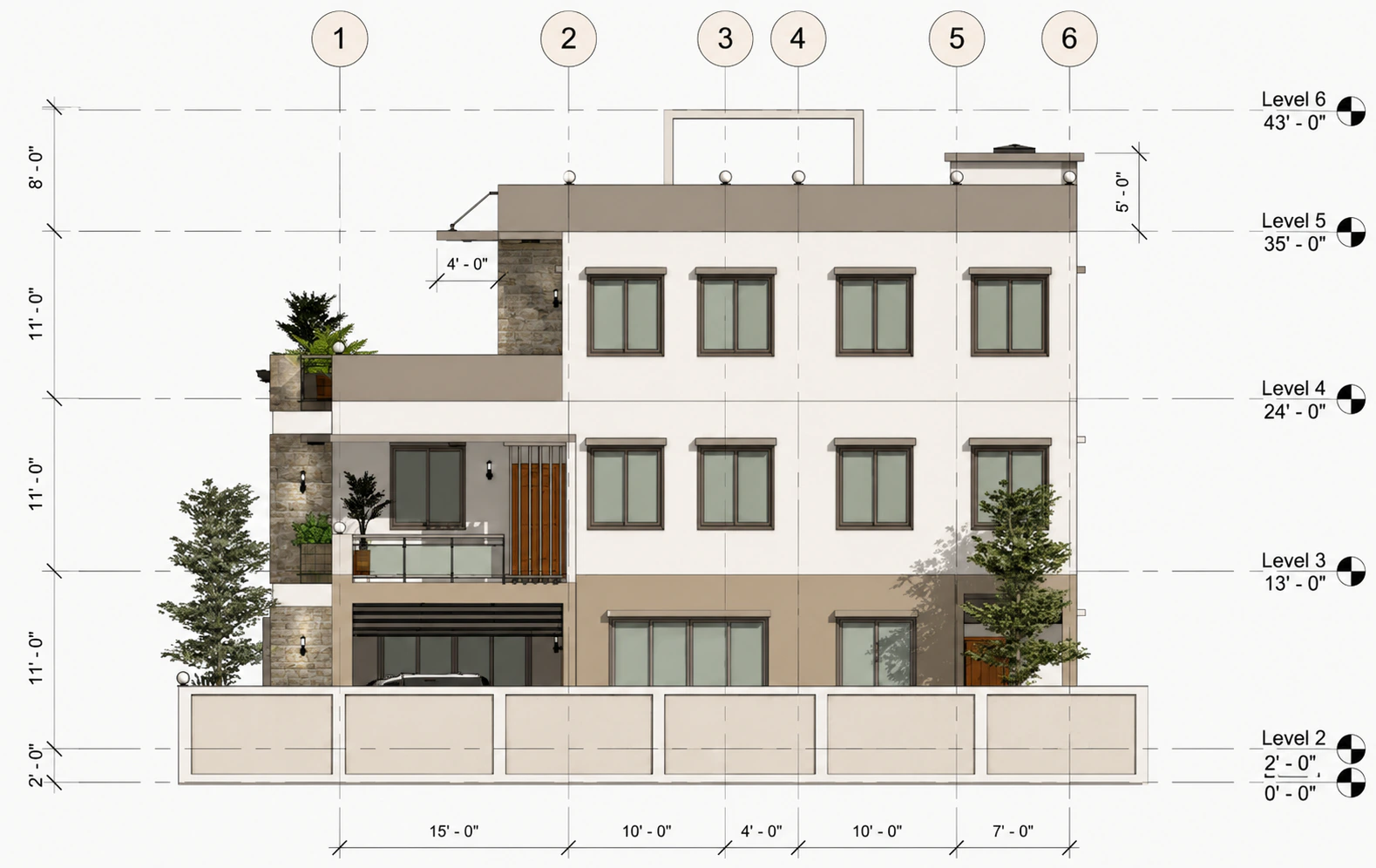

A coordinated residence set presenting four elevations and complete plans from the ground level through the roof.

The design study focuses on facade rhythm, planted terraces, room stacking, and roof-level services. The drawing package coordinates plans, elevations, sections, details, dimensions, and technical information into a clear architectural documentation set.

The final image set is arranged as a concise visual narrative, giving clients and project teams a clear basis for reviewing the design direction before the next stage of development.
