Gabled Studio Addition Drawings

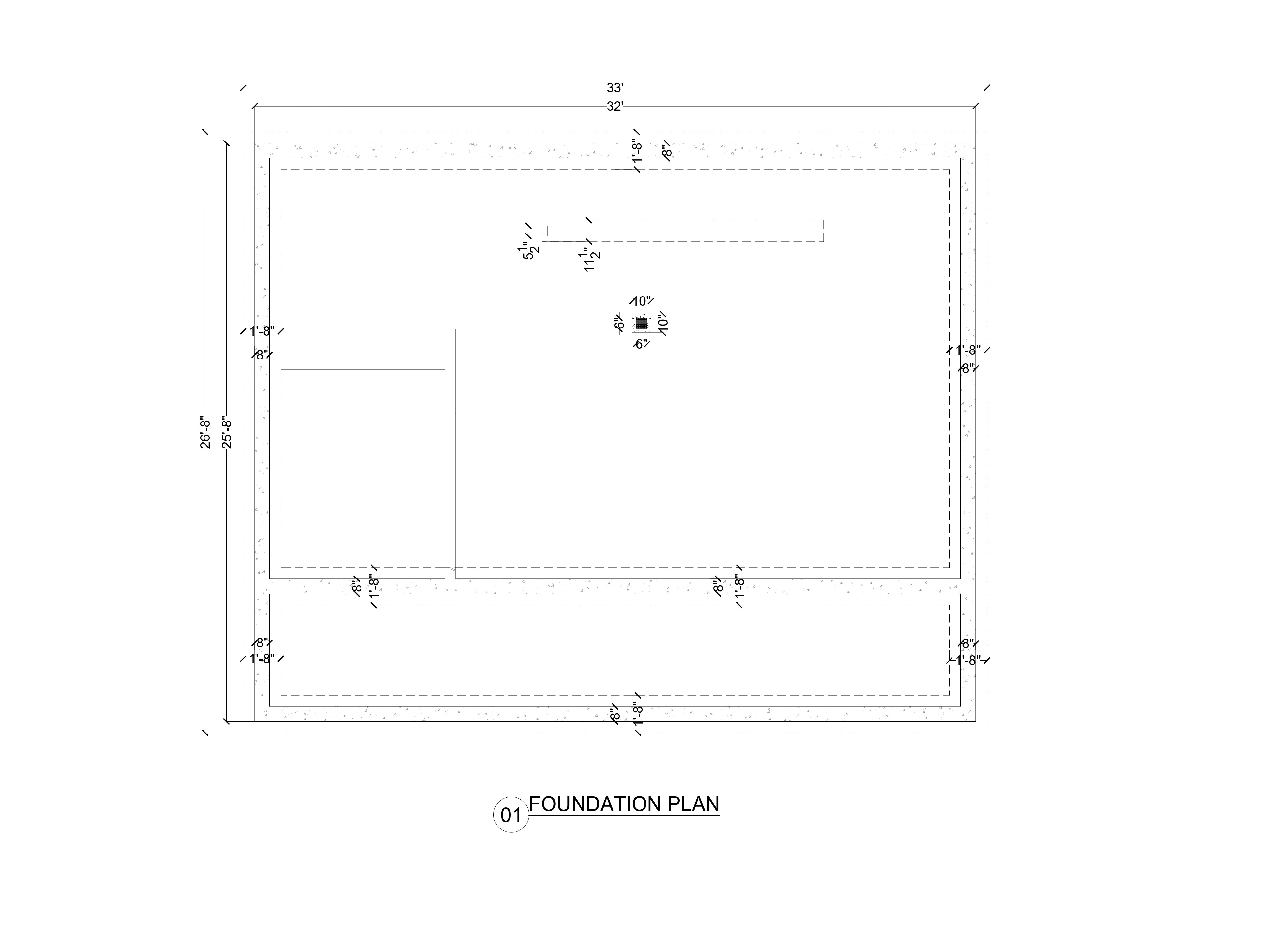

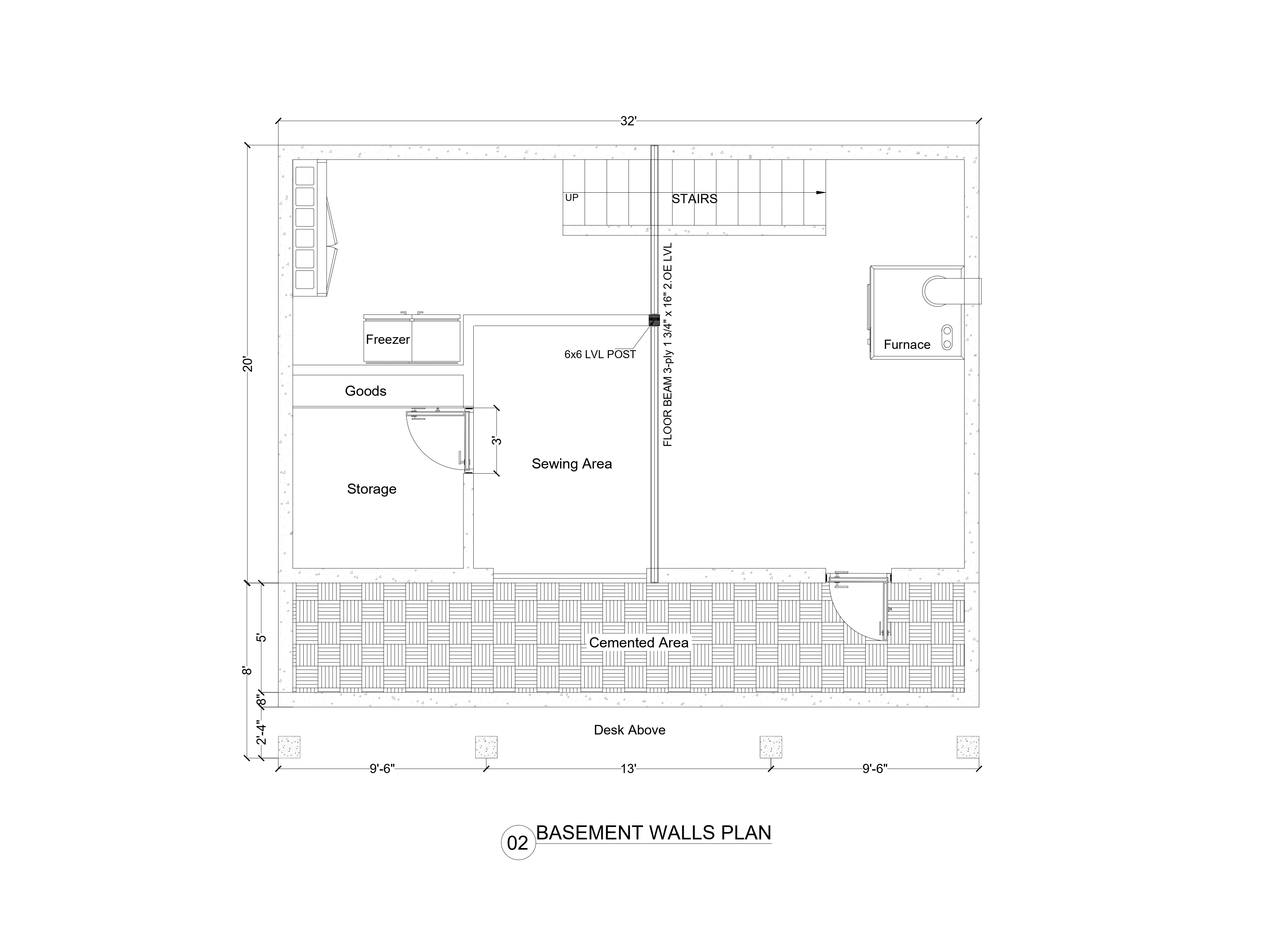

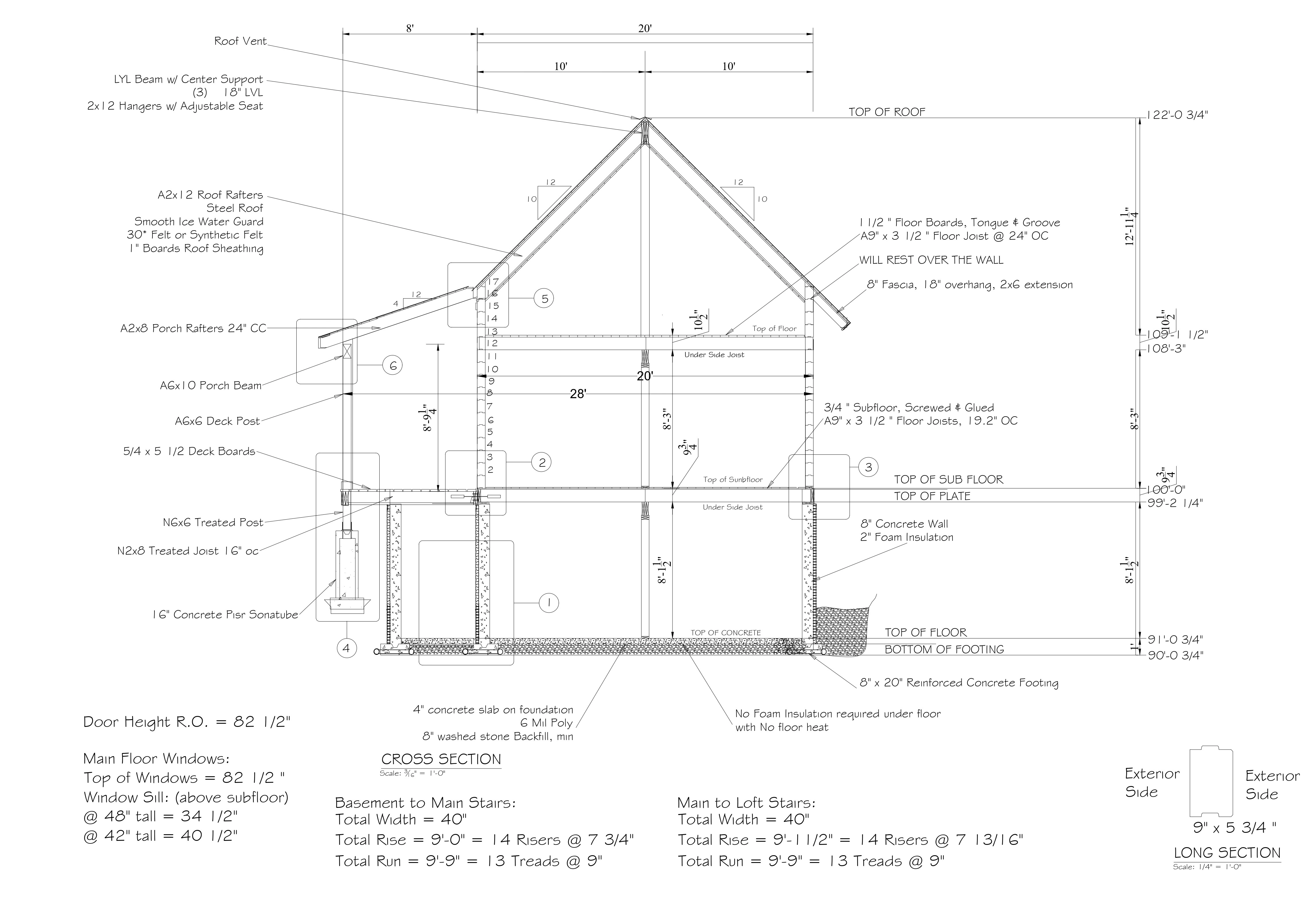

A compact addition package documenting exterior elevations, foundation, basement, wall layout, framing, and building section.

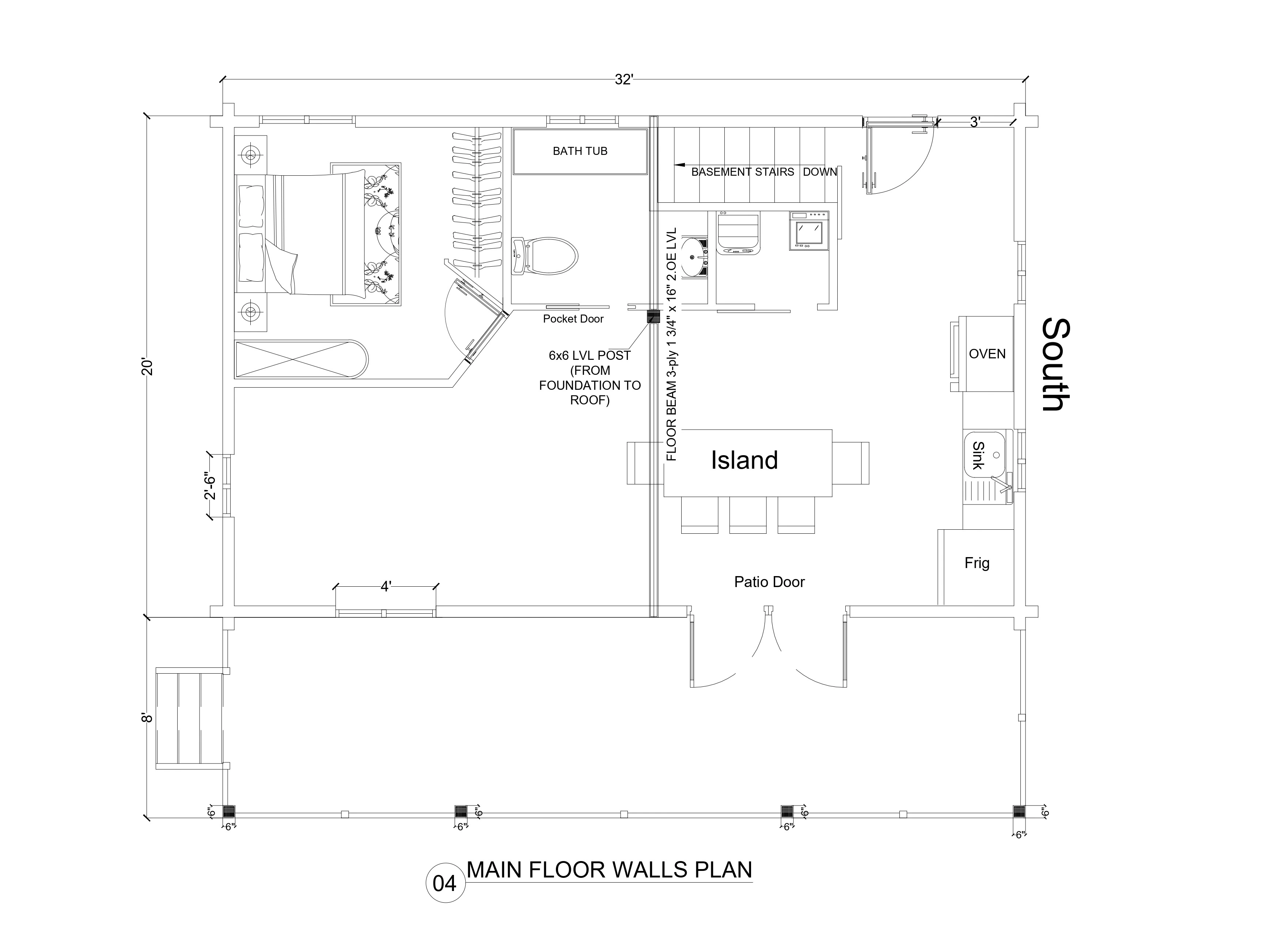

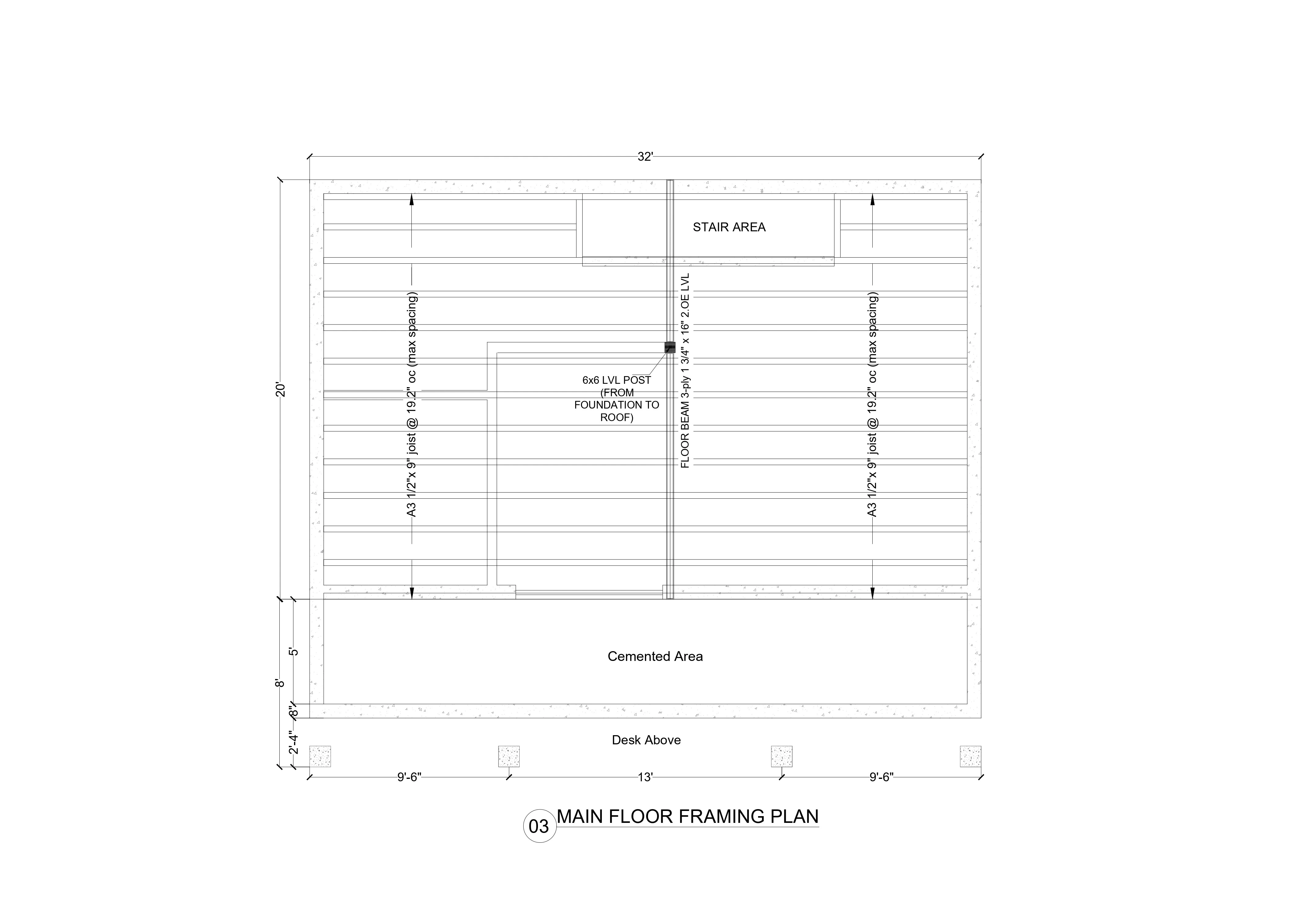

The design study focuses on structural alignment, roof form, wall positioning, and the connection between existing and proposed construction. The drawing package coordinates plans, elevations, sections, details, dimensions, and technical information into a clear architectural documentation set.

The final image set is arranged as a concise visual narrative, giving clients and project teams a clear basis for reviewing the design direction before the next stage of development.
