Split Frame House Drawings

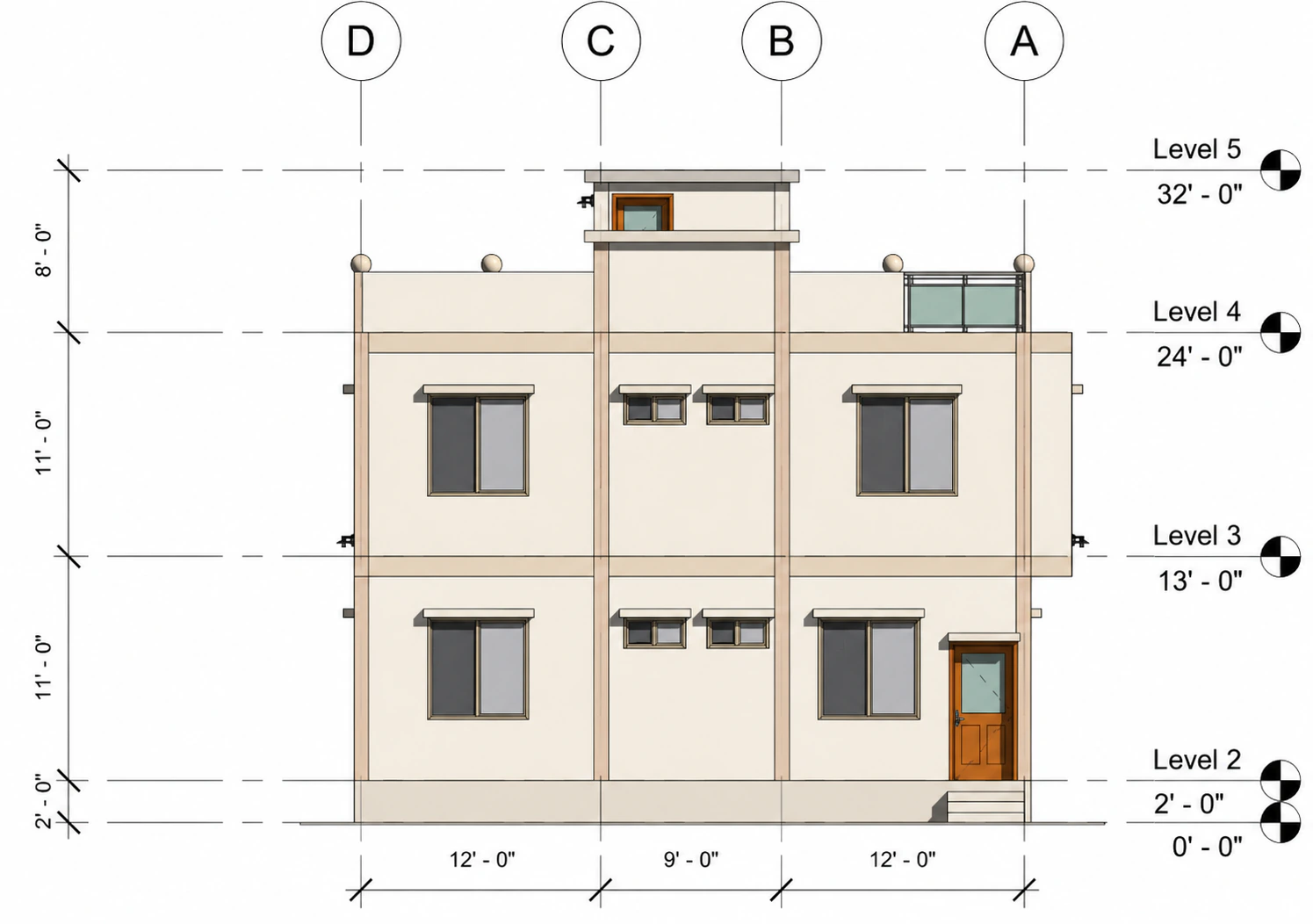

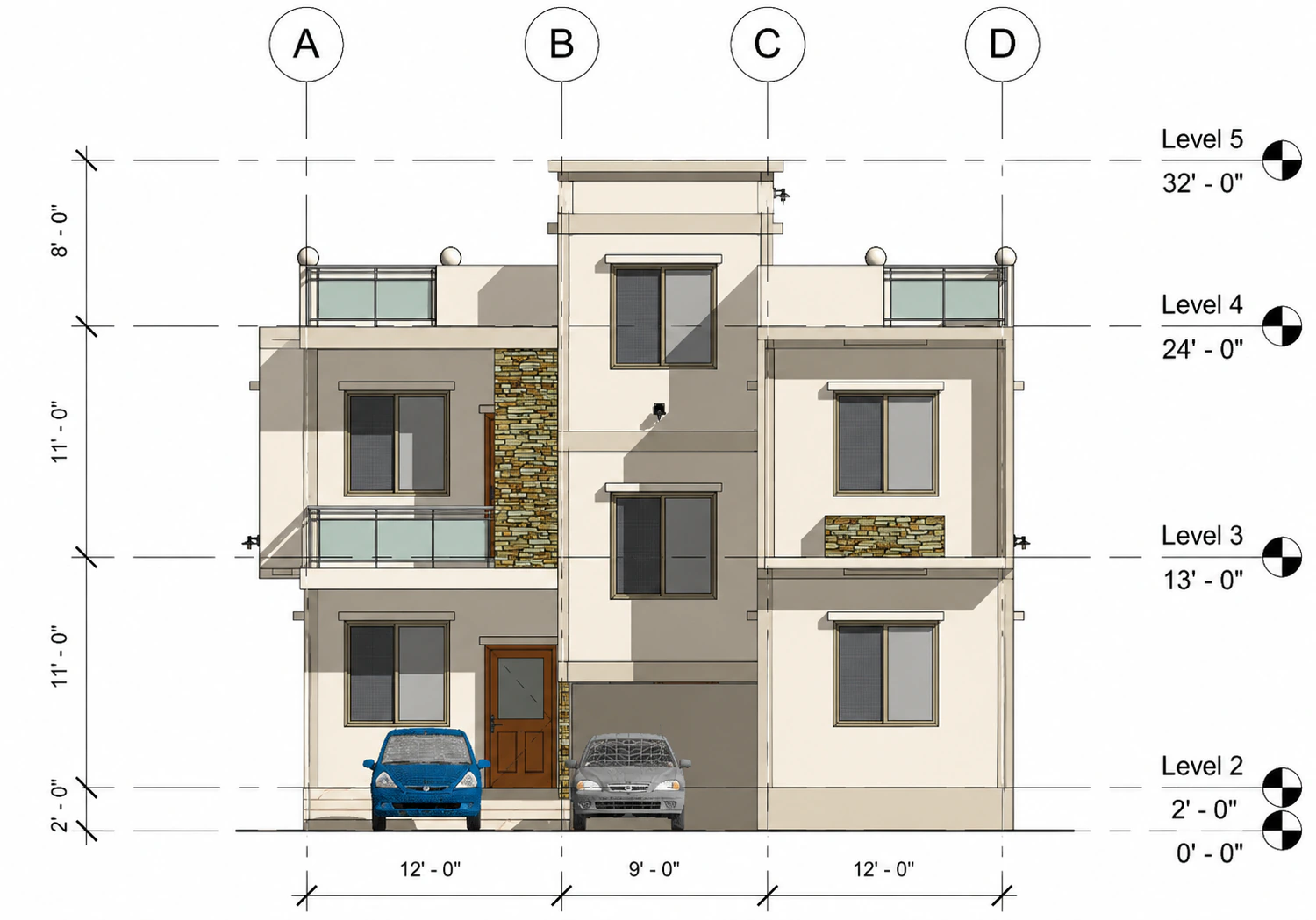

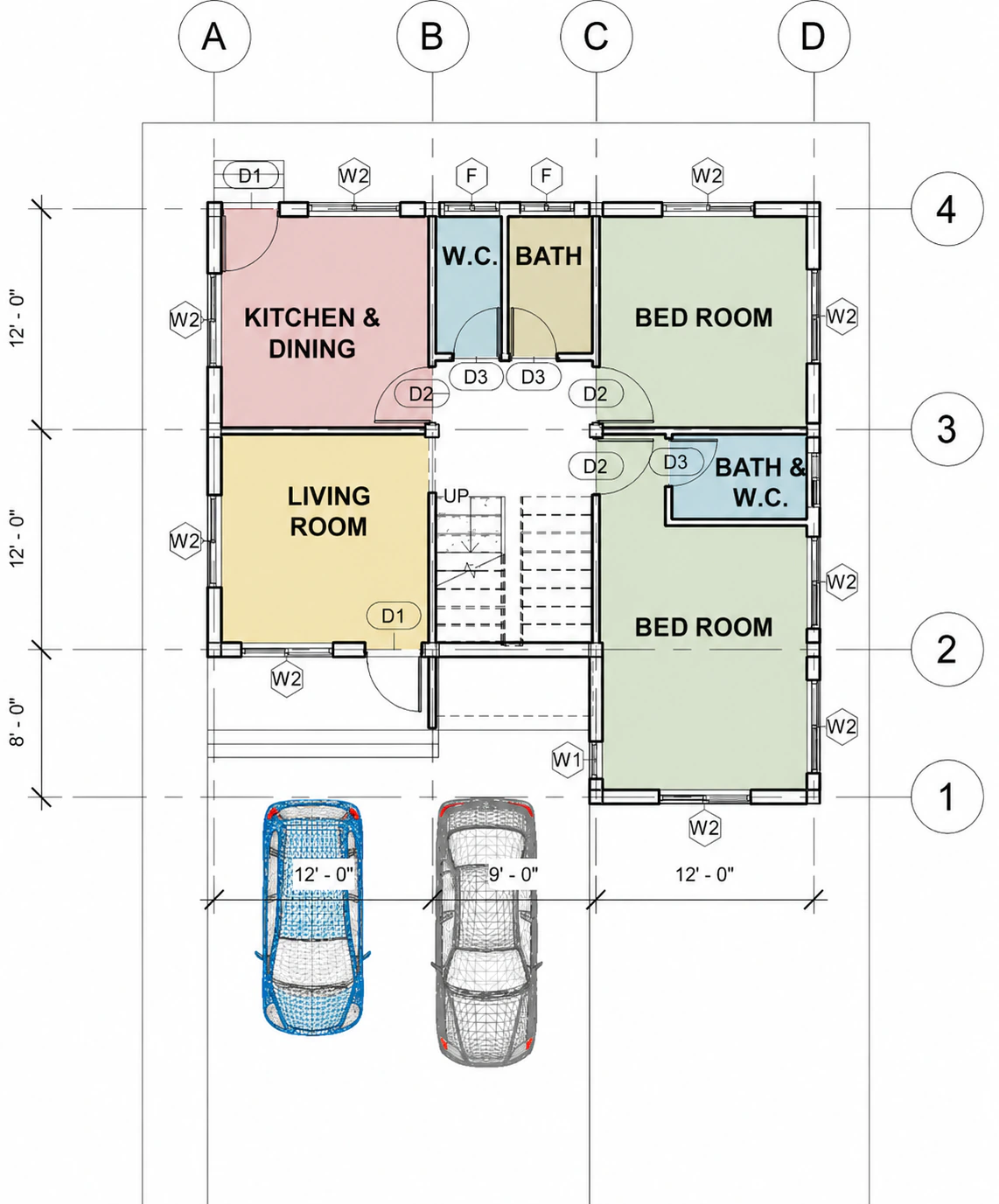

A family-house drawing set with asymmetrical framed elevations and multiple coordinated technical floor plans.

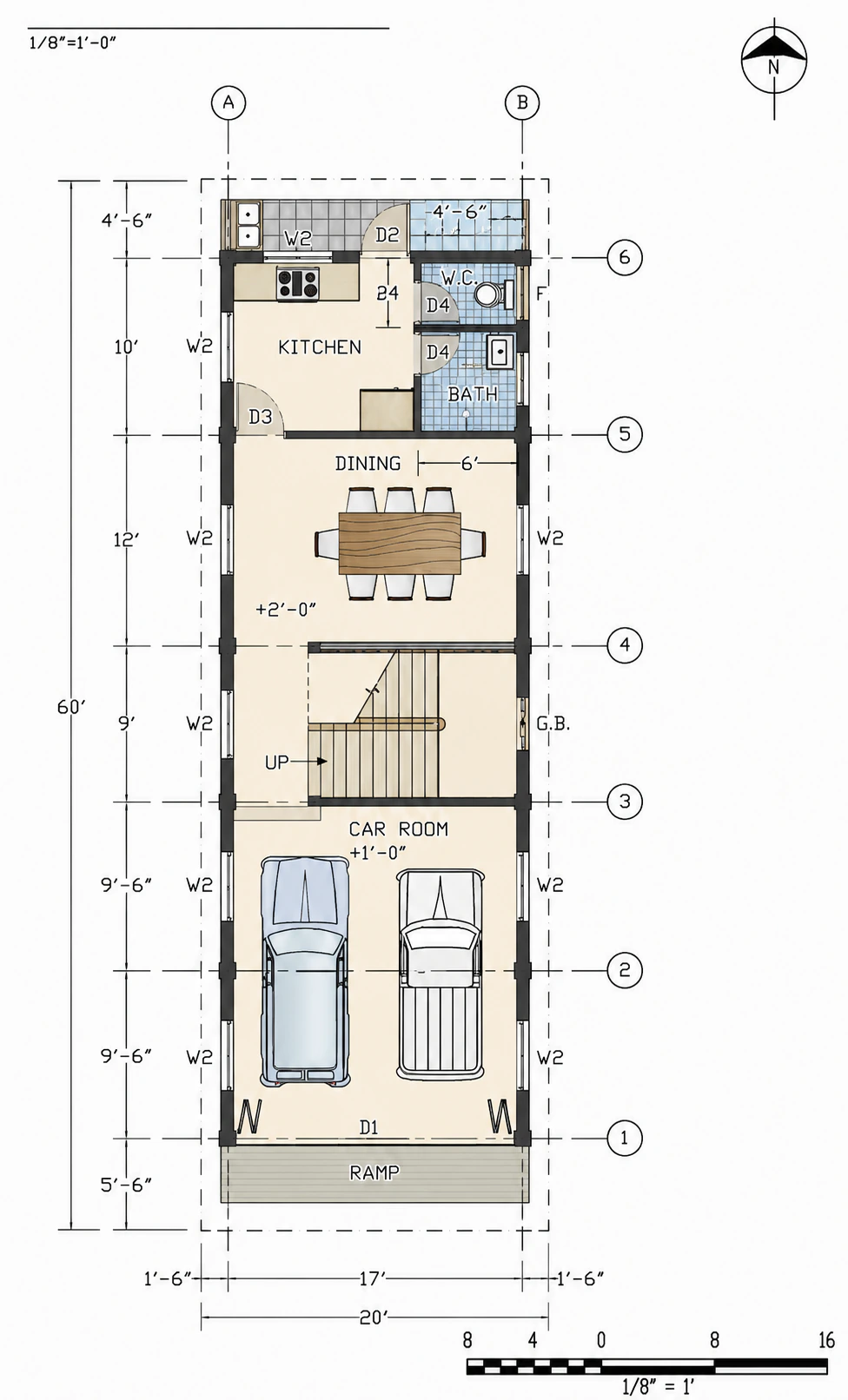

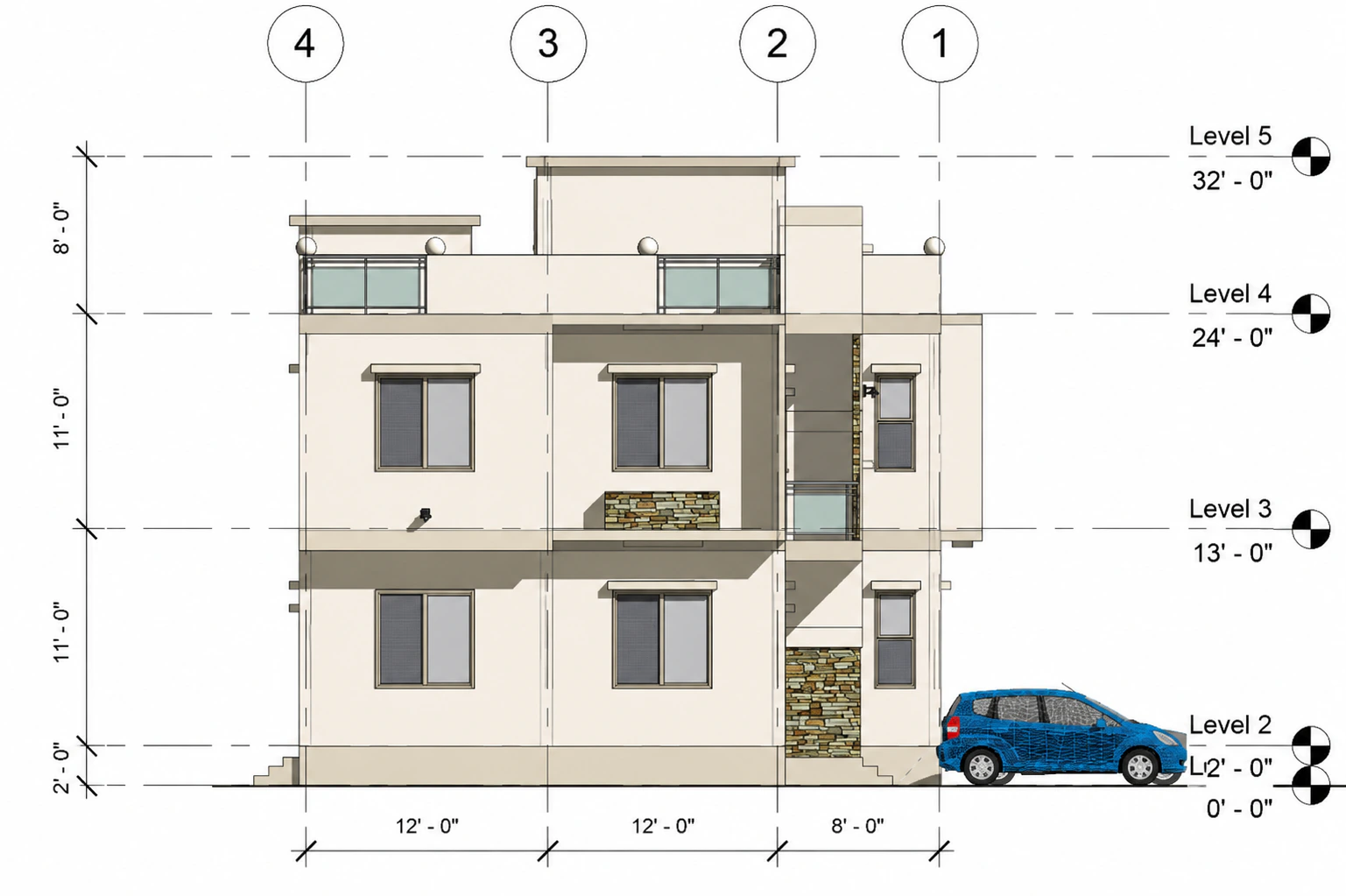

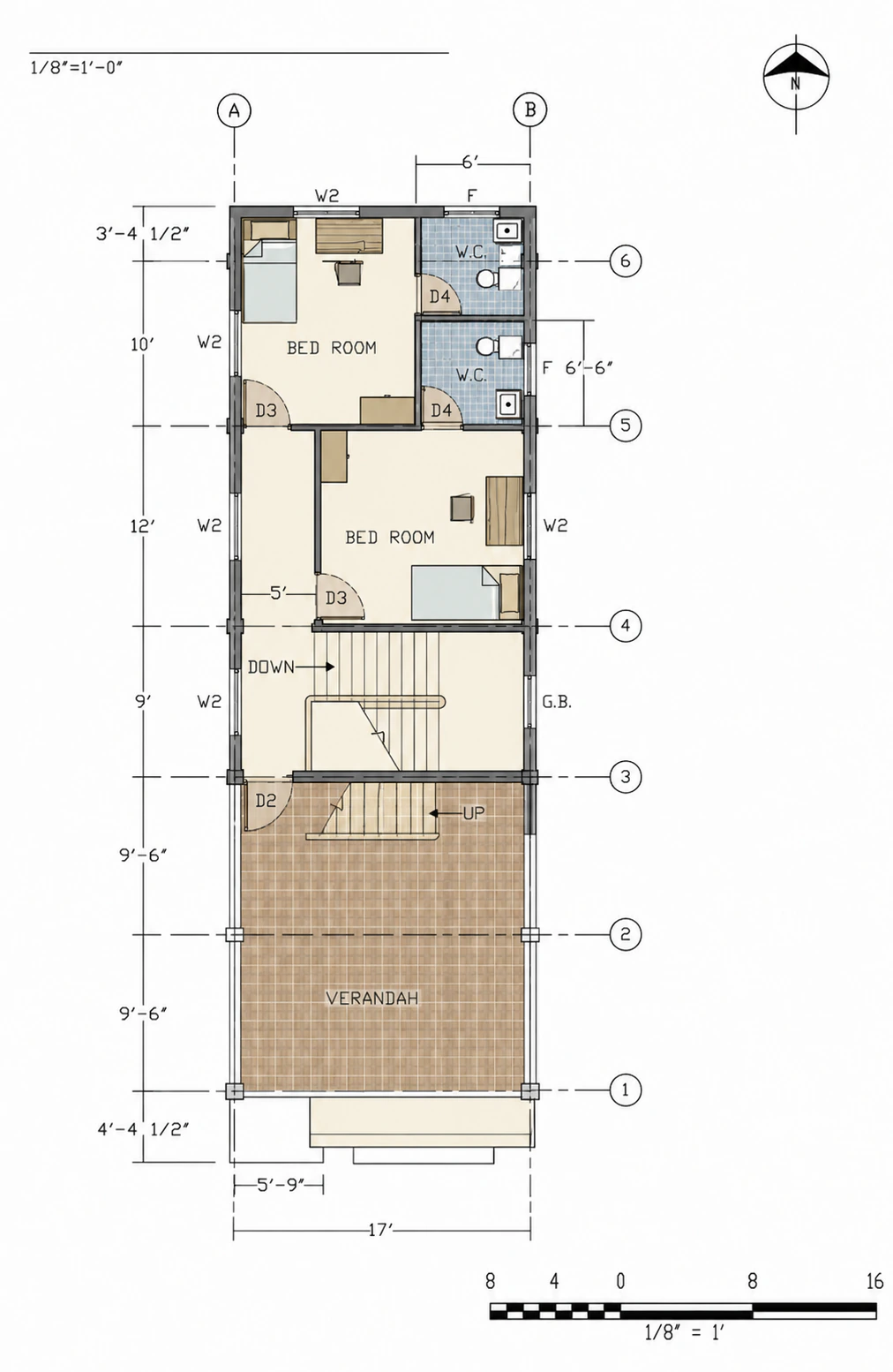

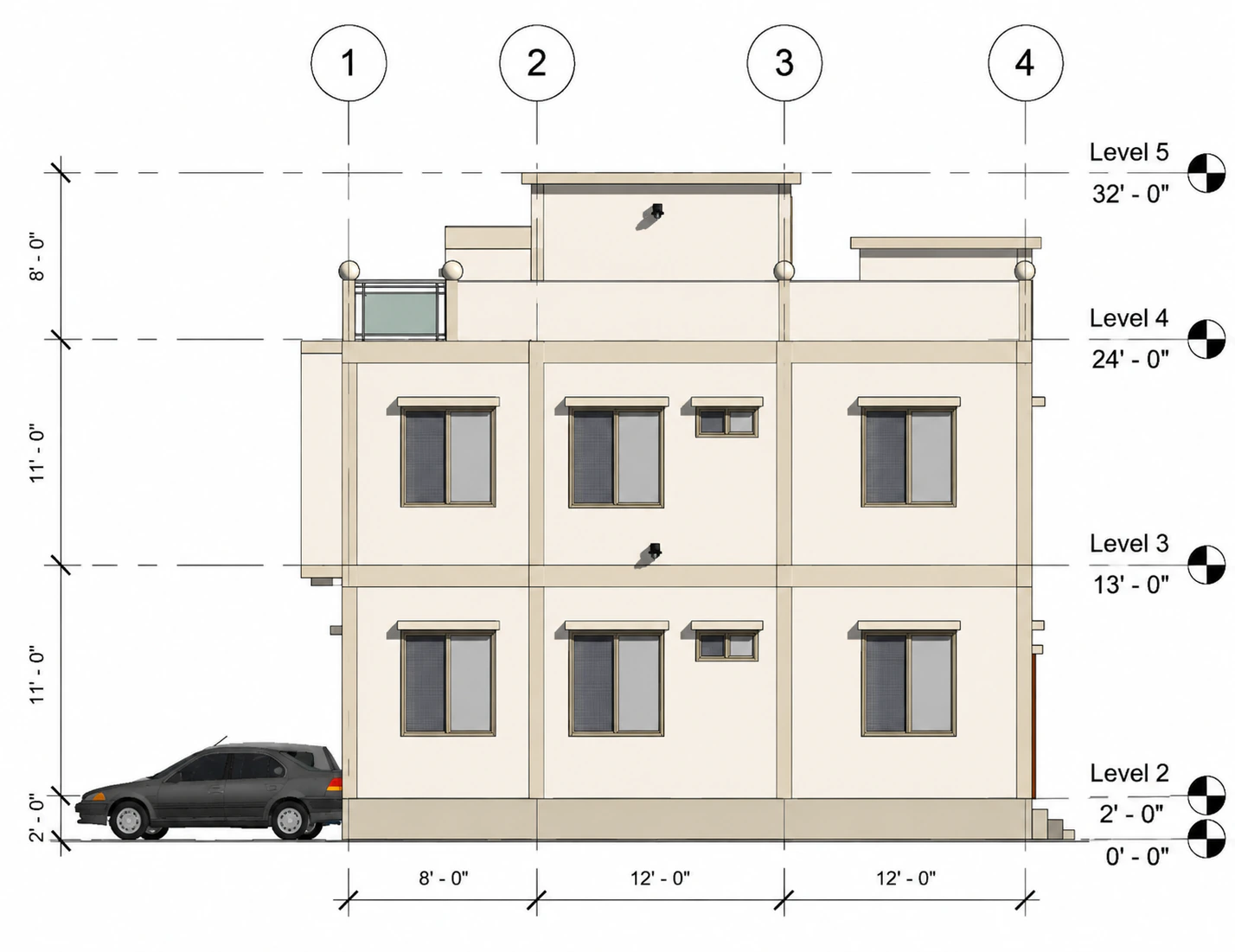

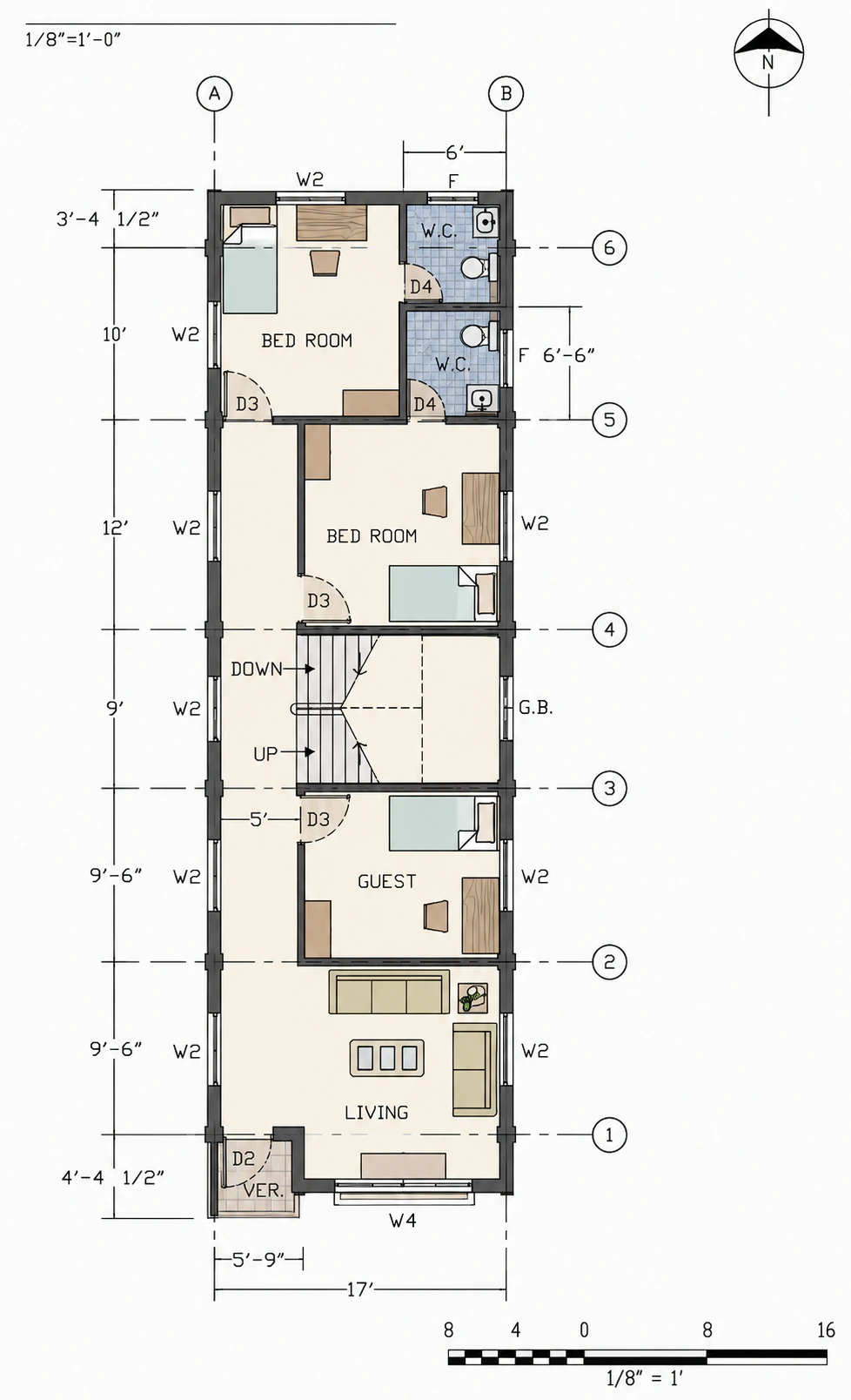

The design study focuses on facade depth, vehicle access, room zoning, and consistency between presentation and technical plans. The drawing package coordinates plans, elevations, sections, details, dimensions, and technical information into a clear architectural documentation set.

The final image set is arranged as a concise visual narrative, giving clients and project teams a clear basis for reviewing the design direction before the next stage of development.
