Vertical Court Townhouse Drawings

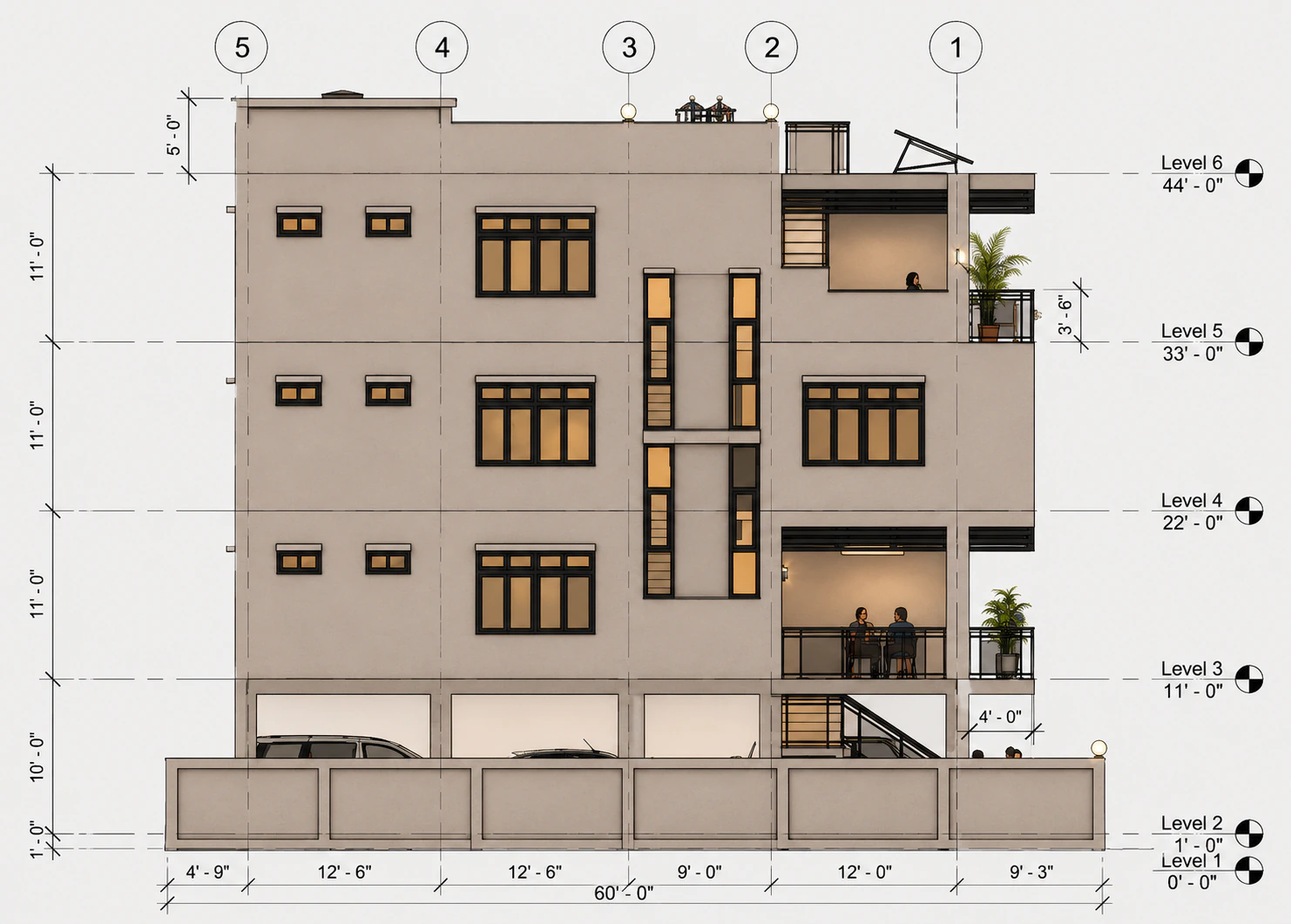

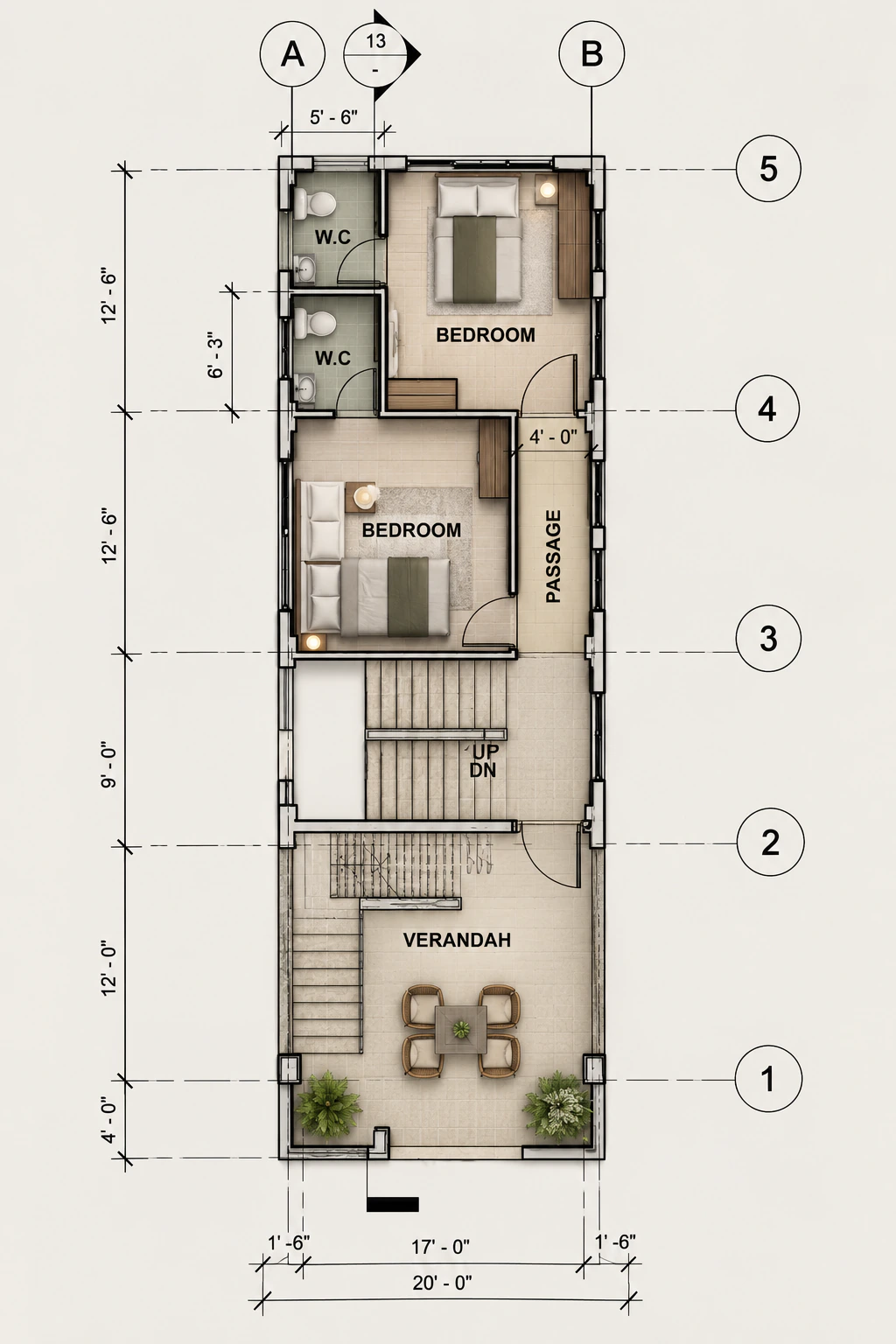

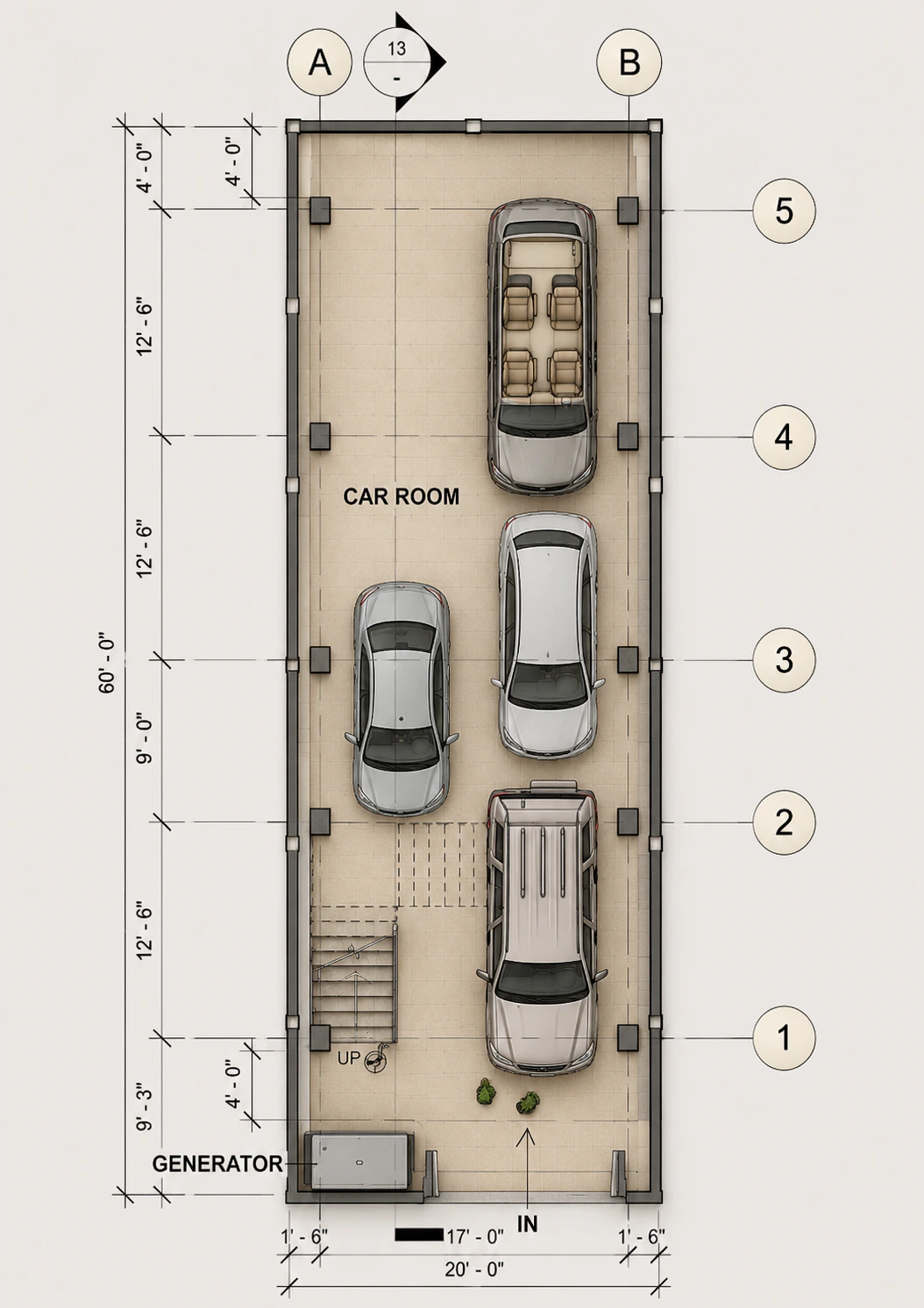

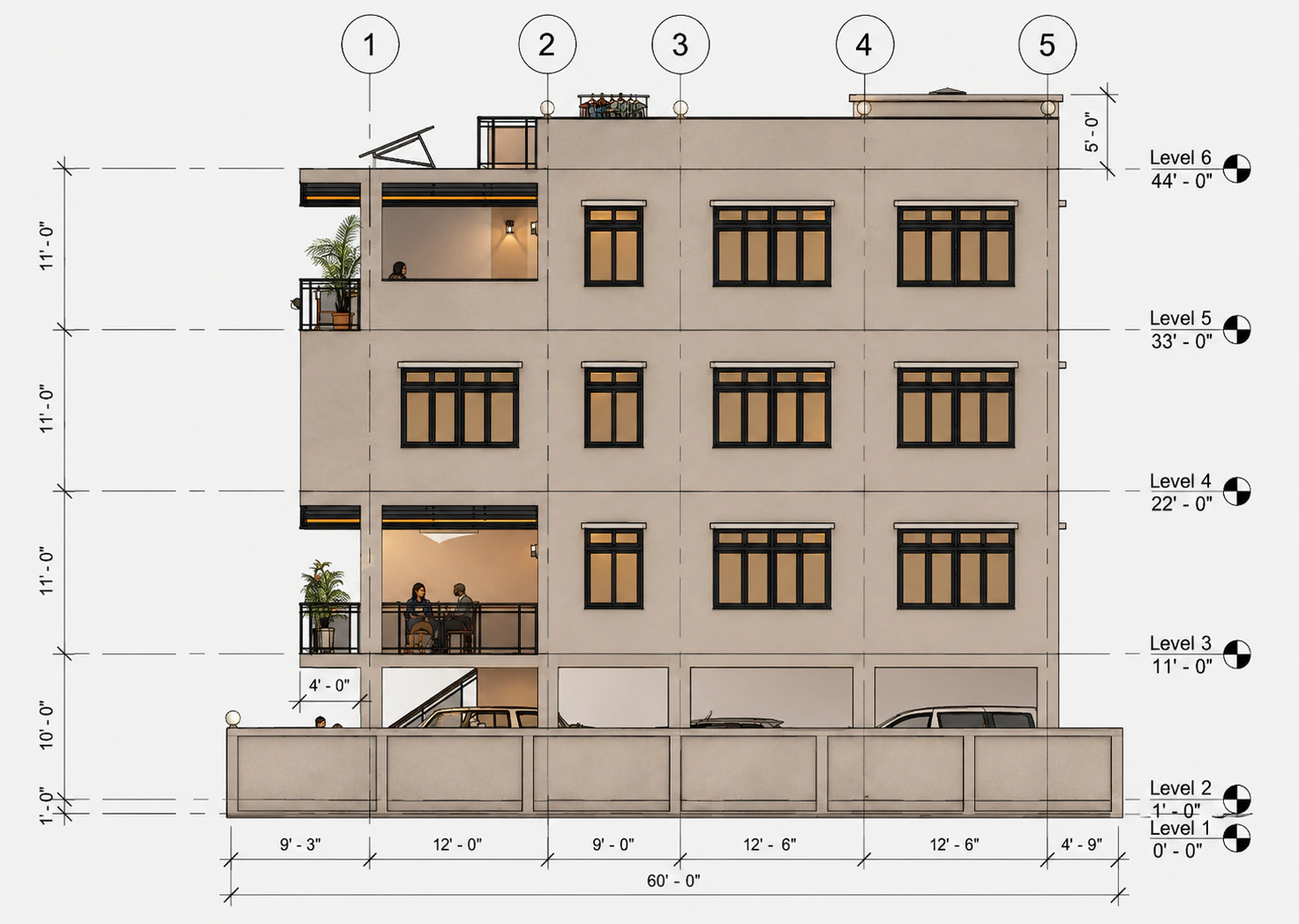

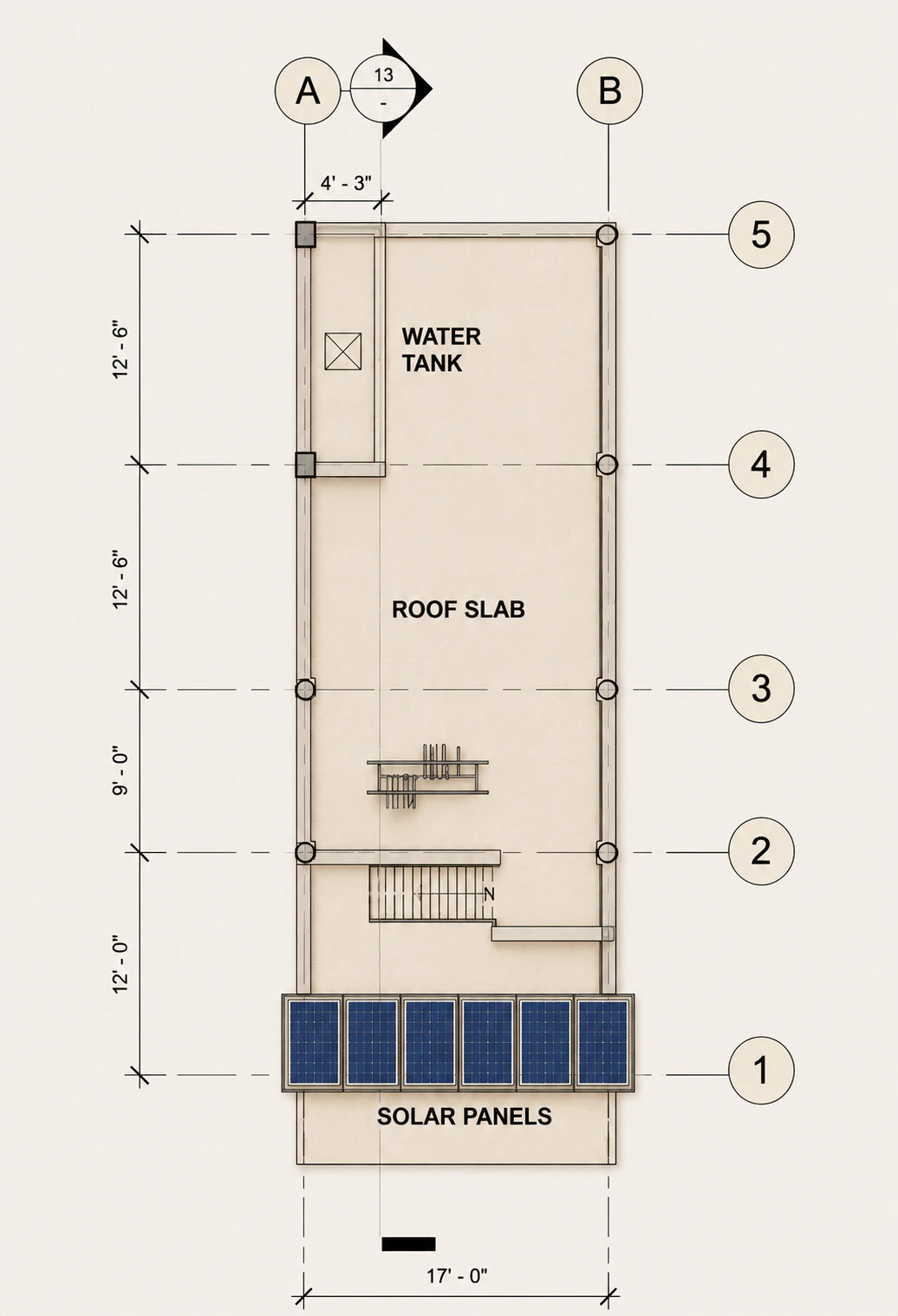

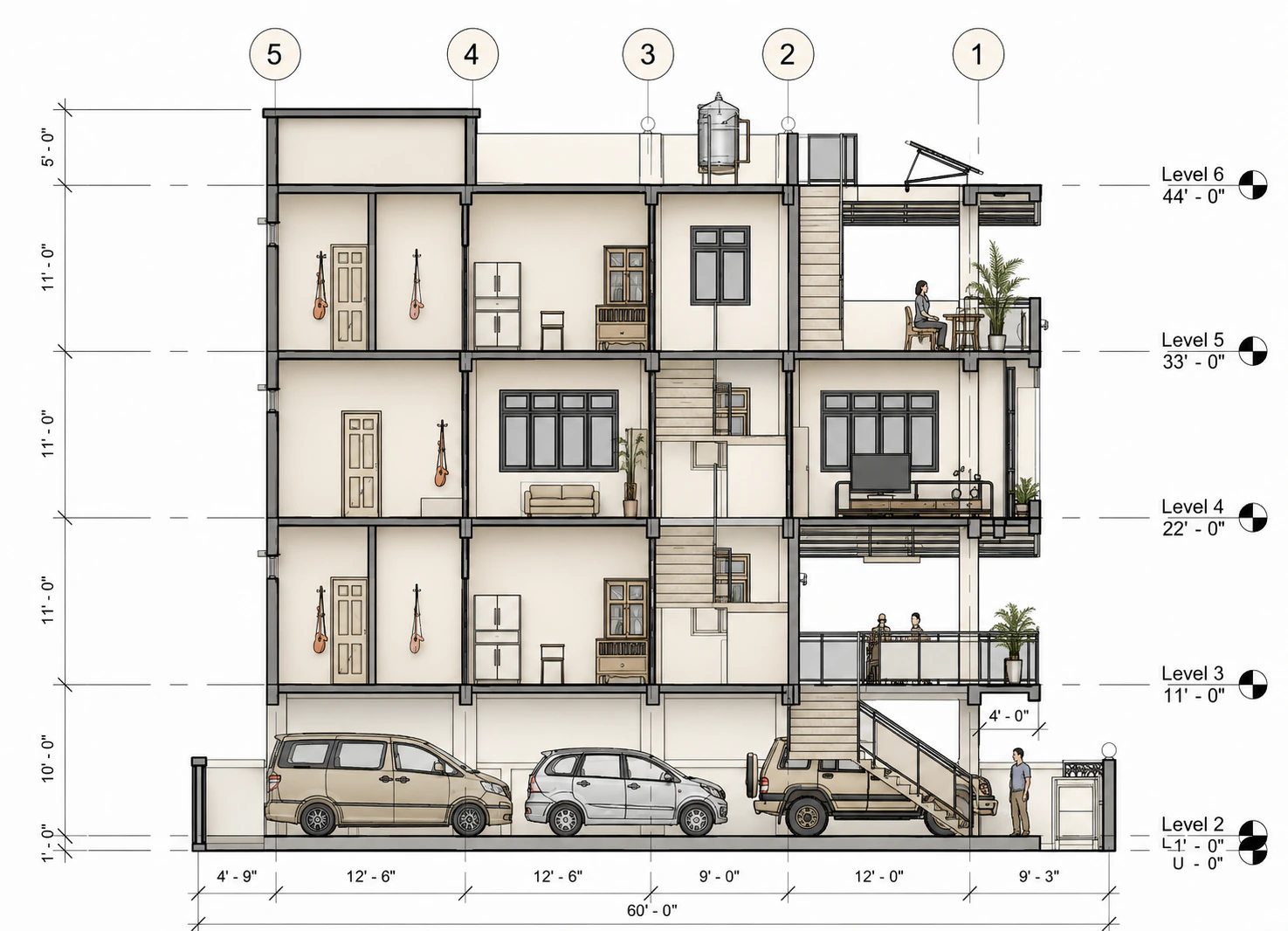

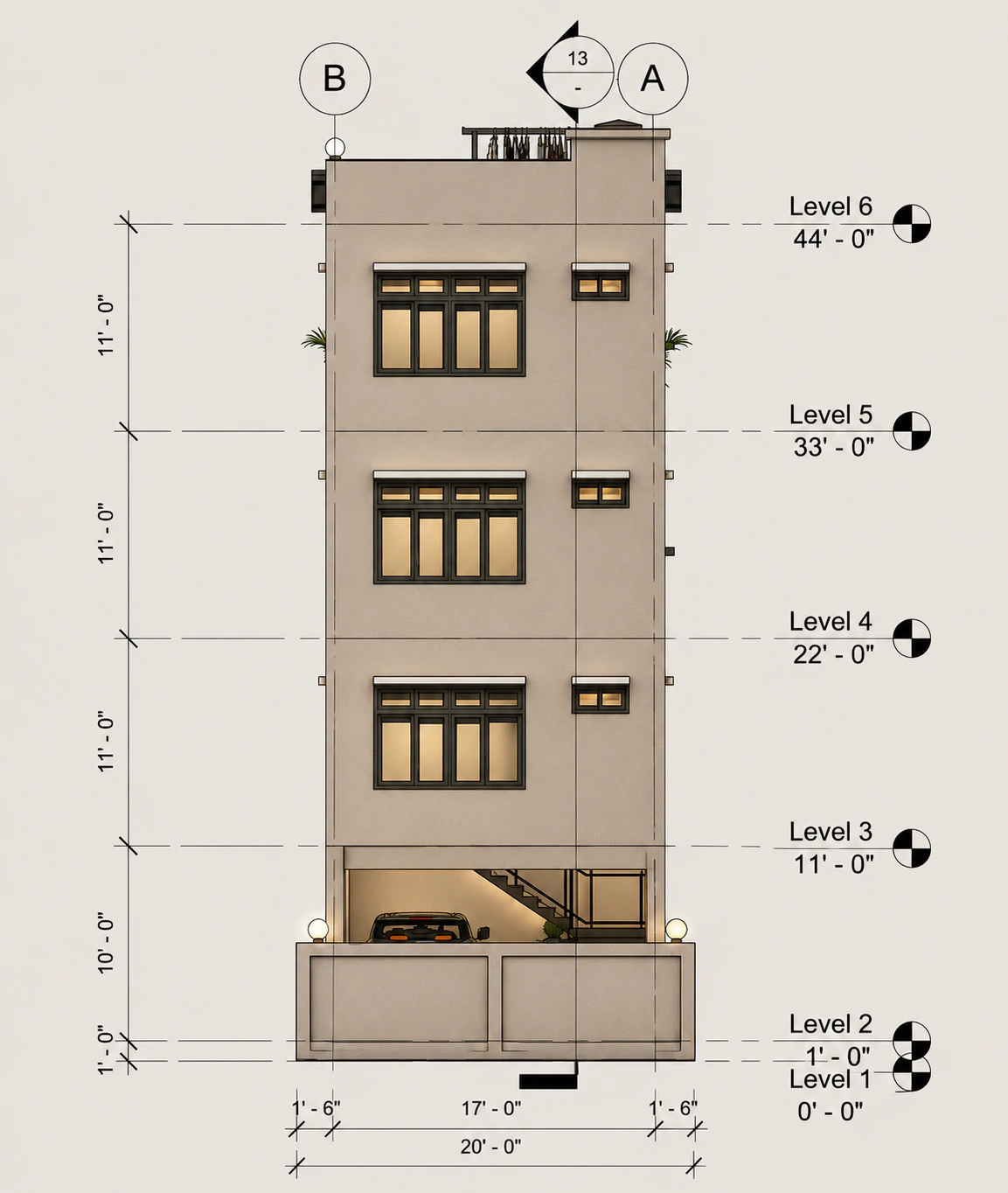

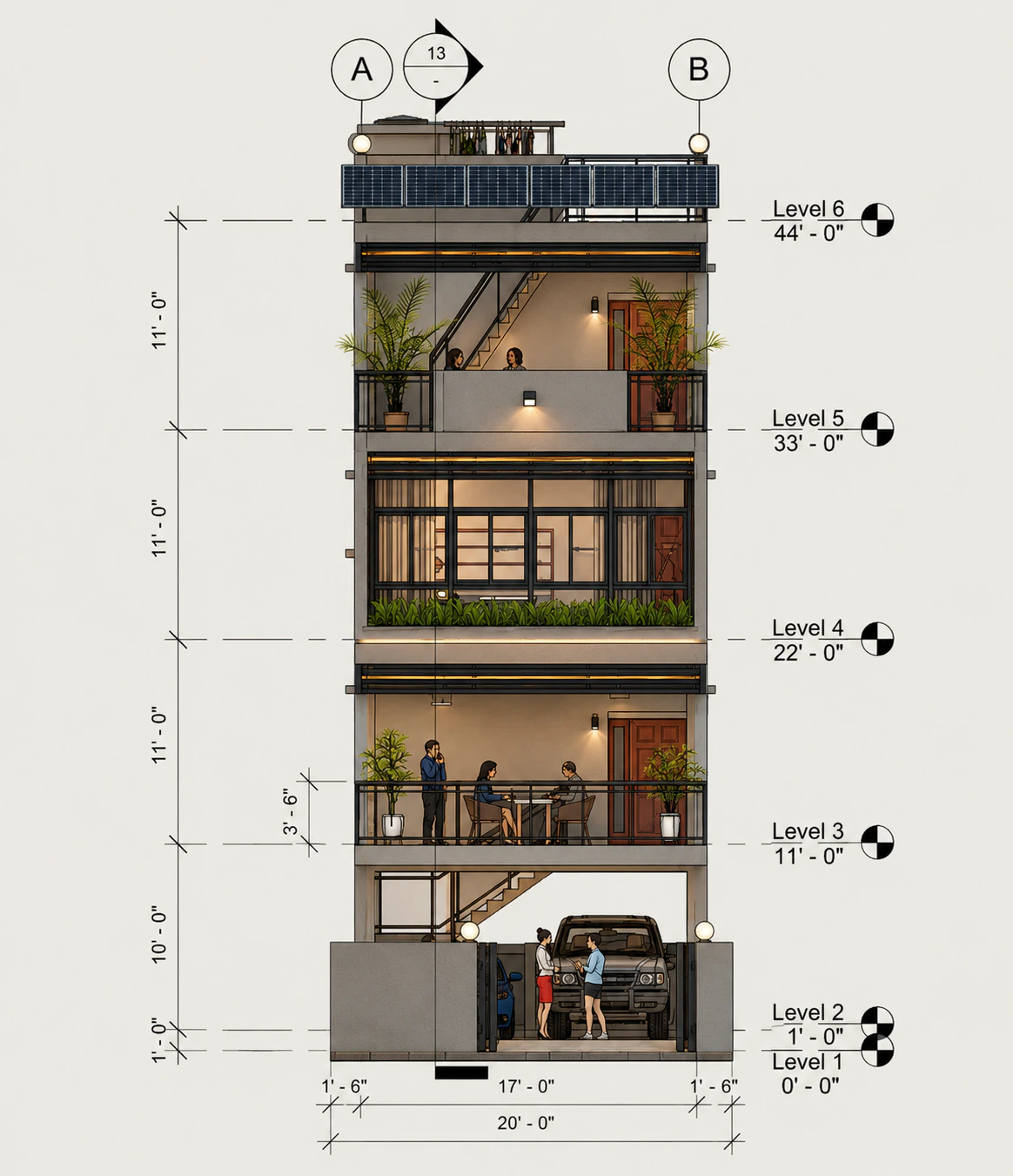

A narrow multi-level townhouse drawing set combining dimensional elevations, parking, residential floors, roof planning, and section.

The design study focuses on vertical circulation, compact floor plates, facade proportions, and stacked outdoor spaces. The drawing package coordinates plans, elevations, sections, details, dimensions, and technical information into a clear architectural documentation set.

The final image set is arranged as a concise visual narrative, giving clients and project teams a clear basis for reviewing the design direction before the next stage of development.
